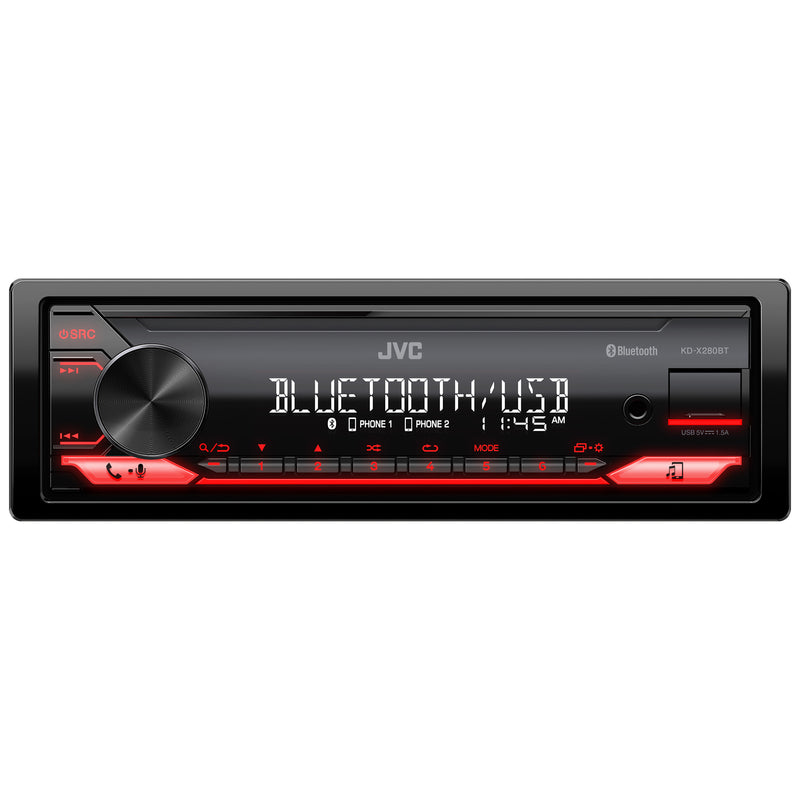

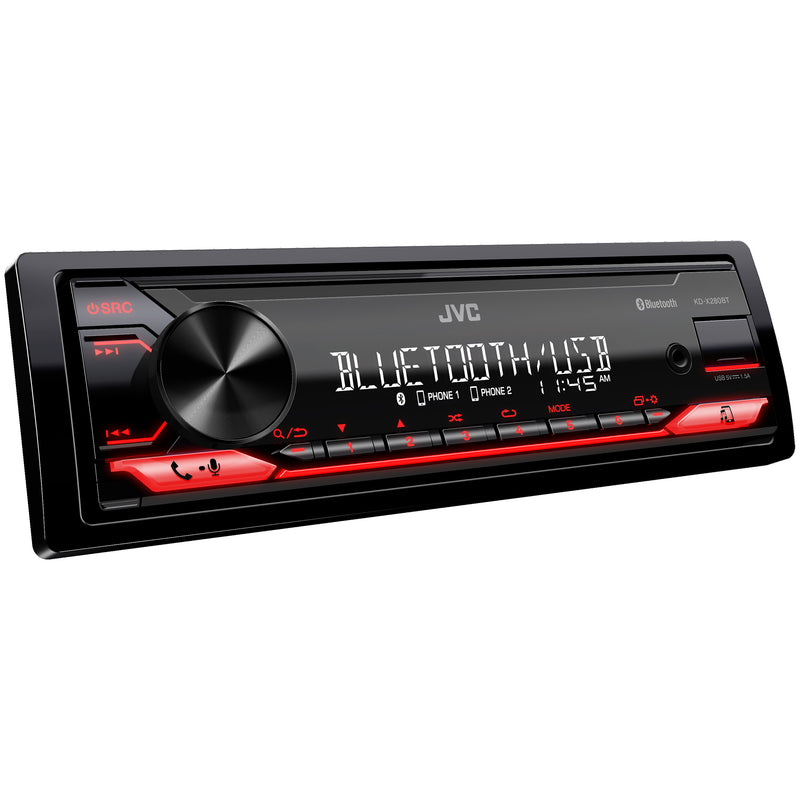

KD-X280BT JVC Bluetooth Single-Din Car Radio w/USB, AM/FM Radio, MP3 Player, High Contrast LCD Detachable Face Plate, Mechless Shallow Chassis
KD-X280BT
Digital Media Receiver featuring Bluetooth® / USB / 13-Band EQ / JVC Remote App Compatibility
Bluetooth® Control
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.
JVC Streaming DJ
Connect up to 5 Bluetooth devices simultaneously, allowing you and your friends to take turns streaming music like a DJ. Move to the groove and get the party pumping to the max.
2 Phones Full-Time Connection
You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the receiver.
Bluetooth Hands-Free Profile 1.7
HFP 1.7 Wideband Speech is supported, allowing you to enjoy hands-free phoning convenience together with higher voice quality and improved noise reduction.
Low Battery Information
When the battery of the connected Bluetooth device runs low, a beep sound is heard and “LOW BATTERY” appears on the receiver.
Display
Music Sync. Effect
Changes illumination patterns according to the rhythm of the music.
Spanish Text Display Compatible
On-screen display menu now available in Spanish.
USB
High Current 1.5A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.
Sound Optimization
K2 Technology for Enhanced Digital Sound Quality
Time Alignment
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
13-Band Equalizer
Use the 13-Band Equalizer to manually adjust the sound to your taste.
Remote Control App (Android)
Control the receiver's source directly from the smartphone using simple finger gestures with "JVC Remote" app* (now available for both iOS and Android). You can even customize your audio setting, and see detailed source information such as song title, artist name and album art etc. from the smartphone.
Short Chassis
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.
Remote Control (Optional)
Remote control (RM-RK52) is optionally available.
Steering Wheel Remote Control Ready
Factory steering wheel control functions can be retained with a third-party adapter (sold separately).
KD-X280BT
Display
- Display Type VA LCD Display
- LCD Color White
- Key Color Red
- Music Sync. Effect Yes
- Spanish Text Display Compatible Yes
- Auto Dimmer Yes
- Brightness Control Yes
Media Playback
- MP3 Compatible with Tag USB
- WMA Compatible with Tag USB
- WAV Compatible with Tag USB
- FLAC Compatible with Tag USB
Bluetooth Control
- Built-in Bluetooth[1] Yes (Ver 4.2, Wired-Mic included)
- Hands Free Call Yes (HFP 1.7.1)
- 2 Phones Full-Time Connection Yes
- Audio Streaming & Control (A2DP, AVRCP) Yes (AVRCP 1.6.1)
- Supported Audio Formats SBC
- 5 BT-Audio Connection [JVC Streaming DJ] Yes
- Voice Dialing (voice recognition compatible mobile phone required) Yes
- Phone Book Access Profile (PBAP) Yes
- Low Battery Information Yes
Android Control
- Android Music Playback Yes (via Bluetooth(R))
USB
- Position Front
- USB Power Supply Yes (1.5A)
- Drive Change Mode for Mass Storage Class Yes

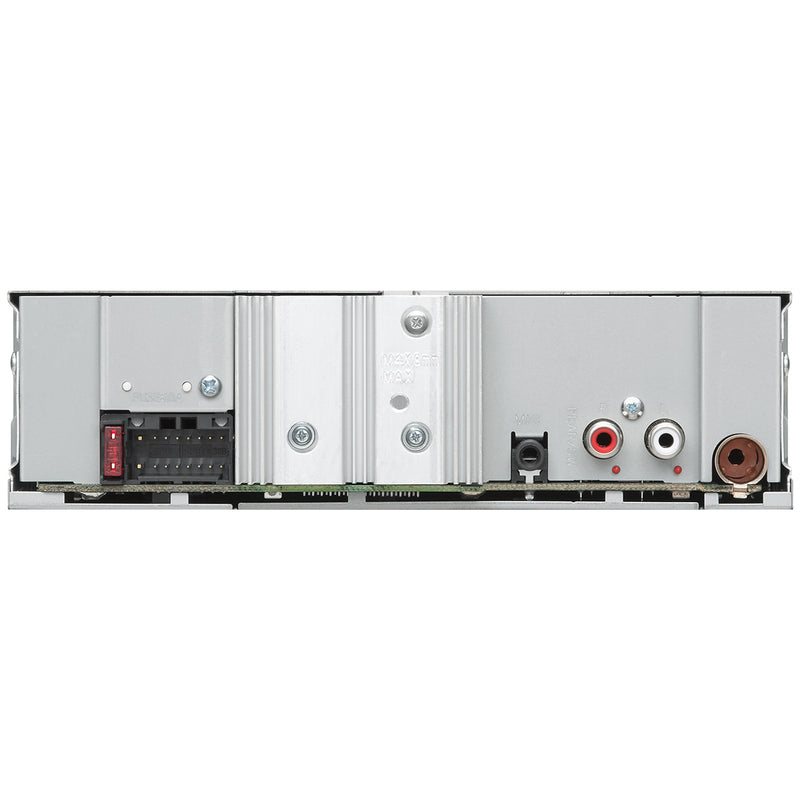

Inputs and Outputs
- AUX Input 1 (Front)
- Line Output Terminals (Pair) 1 Pair (Rear/Subwoofer Selectable)
- Pre-Output Level 2.5V
- Subwoofer Output with Level/Frequency Control Yes (Level -50 to +10)
- Subwoofer Output Level 2.5V
Tuner
- Radio Data Broadcast System (RBDS) Yes
- Preset Stations 18FM + 6AM
- Strong Station Memory (for FM) Yes
- Tuner Preset Memory (for power disconnection) Yes
- FM Frequency Range (Frequency Step) 87.9 - 107.9MHz (200kHz)
- AM Frequency Range (Frequency Step) 530 - 1,700kHz (10kHz)
Audio
- Maximum Power Output 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
- Full Bandwidth Power (at less than 1%THD) 22W x 4
- Subwoofer Direct Connection (Mono Lch) Yes
- EQ Yes (13-Band Graphic EQ)
- Preset EQ Yes (11-Preset)
- Bass Boost Yes
- Loudness Control Yes
- High-Pass Filter/Low-Pass Filter Yes/Yes
- K2 Technology Yes
- Time Alignment Yes
- Space Enhancement Yes
- Sound Response Yes
- Sound Lift Yes
- Volume Link EQ Yes
General
- Short Chassis Yes
- Back Up Memory Yes
- Detachable Face Panel Yes
- Steering Remote Control Ready Yes
- Remote Control Application Yes
- Dimensions (W x H x D)
- Installation Size 7-3/16" x 2-1/16" x 3-15/16" (182 x 53 x 100mm)
- Weight 1.3 lbs. (0.6kg)
- Unit weight in individual package 2.0 lbs. (0.9kg)
